Sigenergy SigenStor Gives Revolutionary 5-in-1 Power

Bill McKibben
15 Min Read

Whether you’re in the UK or down in Brisbane, Sigenergy is a name that keeps popping up in battery comparisons. The Sigen Store packs a stackable battery, solar setup and smart home tech into one system that actually feels simple to live with.

After watching an 18 months long install on the south side of Brisbane, where a 30 kW solar array feeds a 20 kW inverter, a battery stack, and a DC charger for a personal fleet of EVs, I can say the performance, flexibility, pricing and installation all point the same way, and this article walks through why Sigenergy’s efficient, energy-efficient approach to energy and batteries earns customers the best outcome.

About Sigenergy

Sigenergy calls itself a technology company built for homes and businesses that want cleaner energy, and it backs that claim with a manufacturing centre in Shanghai’s Lin-gang New Area  a 20,000 square metres site running on a manufacturing execution system, or MES, so every batch of energy storage systems, solar inverters and EV chargers meets the same product quality before it ships.

Behind the scenes, a research and development team made up of hundreds of professionals blends power electronics, digital systems and artificial intelligence to shape next-generation energy products, and that mix of energy industry know-how and technology industry thinking has turned this technology-led enterprise into a genuine driver of green energy and energy independence.

Sigenergy advanced solar energy and battery production factory

I’ve noticed Sigenergy backs its production systems with real-time quality control, treats safety features and reliable performance as non-negotiable, and ties its global sales and service operations together with consistent standards, innovation and customer experience, all in service of intelligent distributed energy solutions and modern energy solutions that lift efficiency wherever they’re installed.

Sigenergy’s Energy Products

The range starts with SigenStor, a home and business energy system built as a 5-in-1 unit merging battery power conversion, a control and connection hub, storage capacity and an energy controller into one box.

While the modular battery system lets you stack SigenStack battery packs in 5 kWh modules and 8 kWh modules, add a 3-phase backup gateway known as the Energy Gateway, and fit an EV DC charger such as the SigenStor EV DC or a wall-mounted AC charger, the EV AC Charger, for home EV charging.

On the commercial side, the C&I Inverter and commercial and industrial inverter models handle a warehouse or commercial solar systems job, the Hybrid Inverter runs alongside solar panels to manage power flows, and the SigenMicro Inverter works at panel level with solar MPPT tracking and MPPTs built in, so whether you need 3 kW, 12 kW, a 20 kW hybrid inverter or a full 30 kW array, there’s a matching solar inverter.

I’ve seen a real site running six batteries for 32 kWh storage plus 4 x 8 kWh batteries, an inbuilt bypass switch, and Canadian solar N-type panels rated at 465 W, known as a Kraken panel; the setup connects to the mySigen App, a handy mobile app, and the online platform Sigen Cloud for remote monitoring, smart energy management, system management, data analysis and usable electricity tracking.

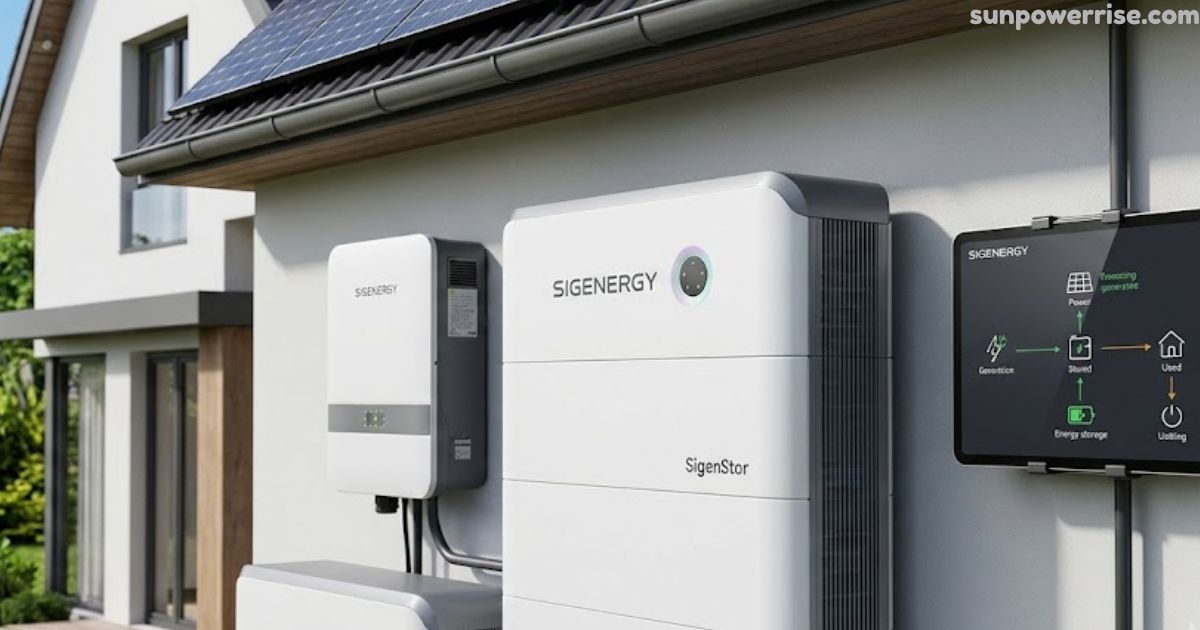

What Is The SigenStor

The SigenStor solar battery is an all-in-one energy system that lets any home or business store and manage electricity from a solar setup, and its energy management system will automatically decide whether to store energy, cover evening power use, or charge electric vehicle batteries, all so you can rely less on grid power and cut waste from your own solar power.

Its 5-in-1 design brings together battery power electronics, a DC EV charger and a solar inverter, and because it clips together during installation, install teams tell me it fits neatly into an existing setup, whether you floor mount it or use the wall mounting kit for a visible area, with the front eye detail and side lighting giving it a modern look that suits most home styles rather than sitting like an industrial-looking box.

As energy storage technology improves, 10 kWh and 16 kWh battery modules will offer greater energy density, enabling solar panels to store surplus electricity, charge faster during peak solar hours, and automatically back up your home during outages, and let you use energy smartly, charging EV batteries and lower energy bills by dodging peak-time electricity.

Scalability

Because the system is modular and stackable, you can start with a smaller setup built around one 5 kWh unit or 8 kWh unit and add more batteries as your energy use grows, and thanks to extra battery modules and an additional 8 kW module, a single energy controller can eventually manage six 8 kWh units for a maximum of 48 kWh on one stack.

Charging and discharging run at half rating, so a 5 kWh unit handles roughly 2.5 kW while an 8 kWh unit reaches close to 4 kW, which means six units could theoretically push 24 kWh, though your inverter rating and the wider power levels of your setup will cap the real number.

On a single-phase supply, you can stay under the 17 kW G98/G99 limit while running up to five stacks in parallel, mixing an additional inverter or connecting SigenStor units side by side, and I’ve seen larger sites and businesses in Queensland scale up with solar panels and 32 kWh battery storage feeding commercial loads, all while respecting the local DNO allowance and higher capacity needs.

Safety, Reliability & Weatherproofing

Sigenergy batteries use large-capacity cells built for a long life, and because the system offers full rated capacity, or 100% depth of discharge, you get access to nearly all of your usable energy without losing much along the way.

Multiple battery protection layers guard against disruptions, keeping the system running even if one power source drops out, and a small screen on the energy controller shows system status at a glance so you always know what’s happening.

With an IP66 weather-protection rating, the unit can sit indoors or outdoors without special housing, and thermal packs help it hold an optimal temperature even in cold weather, proving it’s built for real conditions, not just a lab.

EV DC Charger

Add the SigenStor EV DC, or EV DC charger, and you’re limited to five batteries instead of six batteries, because it takes a battery module replacement slot right below the energy controller as a DC fast-charging module, though you gain a genuinely integrated system with a CCS2 charger and a choice of 5 m cable, 7.5 m cable or 10 m cable.

This 25 kW peak charger, sold in 25 kW modules or a 12.5 kW option, is DC coupled straight to the roof, so it can pull from solar panels or the battery stack, and the charge rate slider lets you set anything from 0 to 100 percent, so a customer in Australia running two EVs might sit at 50 percent for a steady, throttled charging session rather than a full fast charge.

SigenStor Battery Specifications

The SigenStor BAT 5.0 stores 5.38 kWh as its total energy capacity with 5.2 kWh of usable energy capacity, while the SigenStor BAT 8.0 holds 8.06 kWh with 7.8 kWh usable, and both rely on LiFePO4, a battery chemistry and battery type prized for thermal stability and a long cycle life.

Their battery modules’ voltage range runs 300 to 600 V on single-phase and 600 to 900 V on three-phase, with max charge/discharge power sitting at 2500 W for the smaller unit and 4000 W for the larger one.

For short bursts, peak charge-discharge power climbs to 3750 W and 6000 W for just 10 seconds, and you can confirm every figure against the official datasheet if you want the full picture.

Key Benefits of the SigenStor

As an all-in-one energy system, SigenStor combines solar conversion, battery storage and EV charging with smart energy control, giving you easier installation, simpler management and a genuinely scalable setup that suits different-sized homes.

LiFePO4 cells bring thermal stability, a long cycle life and reliable operation, while protection layers support strong power output, peak power ratings and continuous power for everyday appliances, and thanks to a solid weather-protection rating, both indoor installation and outdoor installation work well.

You can add battery modules for higher capacity, connect multiple SigenStor units for high usable capacity, store excess solar power and rely less on grid electricity to reduce bills against rising energy prices, and use the companion app and cloud platform with real-time data, smart monitoring, and simple ways to adjust settings.

Warranty

Sigenergy backs the battery and energy controller with a 10-year warranty, and it’s an extendable warranty, so a warranty extension can stretch that cover to 15 years if you want extra peace of mind.

The DC charger carries a shorter 3-year warranty, and the gateway comes with 2 years, which reflects how each part plays a slightly different role in the wider system.

In my experience, warranty length says a lot about how confident a manufacturer feels about its own hardware, and Sigenergy’s numbers hold up well against the rest of the market.

FAQs

Are Sigenergy batteries any good?

Very much so, with LiFePO4 cells, a 10-year warranty, an IP66 weather-protection rating, and really reliable performance, Sigenergy batteries hold up well against tougher daily use than most homeowners expect.

Which is better, BYD or Sigenergy battery?

Both use solid LiFePO4 battery chemistry, but Sigenergy’s SigenStor pulls ahead with its all-in-one energy system, built-in EV DC charger and modular stackable design, giving it an edge for homes planning EV charging.

How much is a Sigenergy system?

Pricing varies by battery modules, storage capacity, and whether you add the EV DC charger or Backup Gateway, so the honest answer is to get a quote from a qualified installer for your exact home.

Can I add solar panels to an existing Sigenergy system?

Yes, the SigenStor’s modular and stackable design lets you connect solar panels and extra battery modules to your existing setup without swapping out the whole system.

Does Sigenergy work during a power cut?

With the Backup Gateway installed, your home can run off-grid during a power cut, switching over so fast that the lights barely flicker.
